(Be First to review)

Rs. 34,999

(Be First to review)

Rs. 34,999

Rs. 39,999

Quantity:

Chipset: Intel® Z690 Express
Form Factor: ATX (30.5 x 24.4 x 6 cm)
Maximum Capacity: Up to 128 GB
Architecture: Dual channel

See full speces

Store Pickup

Available Today at Zolpa Store

Express Delivery

Available for delivery within 2-3 business days

Rs. 34,999

Rs. 39,999

General Information

Brand

MSI

Model

Z690 P DDR4 WiFi

Chipset

Intel® Z690 Express

Processor Support

12th, 13th, and 14th Gen Intel® Core™, Pentium® Gold, Celeron® (LGA 1700)

Form Factor

ATX

Operating System Support

Windows® 11 64-bit, Windows® 10 64-bit

Audio & Network

Audio Chipset

Realtek® ALC897

Audio Channels

7.1-Channel High Definition Audio

Power, Cooling & Monitoring

Power Connectors

CPU Power: 1× 8-pin ATX 12 V, Main Power: 1× 24-pin ATX main power

Memory Support

Memory Type

DDR4

DIMM Slots

4 x DDR4 DIMM sockets

Maximum Capacity

Up to 128 GB

Supported Frequencies

2133/2400/2666/3200 MHz JEDEC; OC up to 5333+ MHz

Architecture

Dual channel

Memory Features

Non-ECC un-buffered DIMMs, Intel XMP support

Connectivity & Expansion

Expansion Slots

2 × PCIe 5.0 x16 (CPU lane), 2 × PCIe 4.0 x16 (chipset), 2 × PCIe 3.0 x1

USB Interfaces

Back Panel

1 × USB 3.2 Gen2x2 Type-C, 4 × USB 3.2 Gen1 Type-A, 4 × USB 2.0

Internal Headers

2 × USB 3.2 Gen1 headers (support 4 ports), 2 × USB 2.0 headers (support 4 ports)

Internal I/O & Miscellaneous Headers

1 x serial port header, 1 x Clear CMOS jumper, 1 x 24-pin ATX main power connector, 1 x TPM header, 8-pin CPU power, 3 × M.2 connectors, 6 × SATA III, CPU fan, pump, system fan headers, Front panel audio, system panel, chassis intrusion, RGB headers (2 × 4-pin)

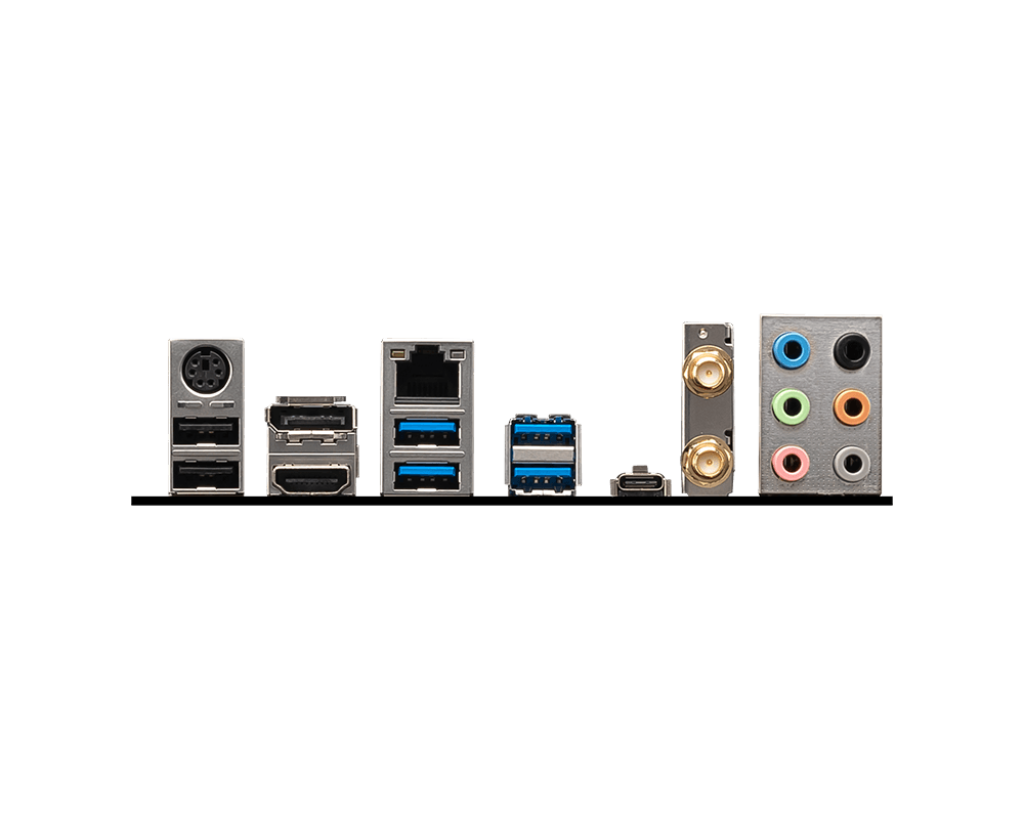

Back Panel Ports

1 x PS/2 combo port, HDMI + DisplayPort, 1 × USB 3.2 Gen2 Type-C, 4 × USB 3.2 Gen1, 2 × USB 2.0, 1 × RJ‑45 2.5 GbE LAN (Realtek RTL8125B), 6 × HD audio jacks (7.1-channel)

Dimensions & Build

Form Factor

ATX

Dimensions

30.5 x 24.4 x 6 cm
