(Be First to review)

Rs. 20,000

Asus TUF B450M-Pro Gaming Micro-ATX Motherboard | AMD AM4 Ryzen 3 Support | DDR4 | HDMI | Dual M.2 | USB 3.1 Gen 2 | Aura Sync RGB Lighting - Image 2

Asus TUF B450M-Pro Gaming Micro-ATX Motherboard | AMD AM4 Ryzen 3 Support | DDR4 | HDMI | Dual M.2 | USB 3.1 Gen 2 | Aura Sync RGB Lighting - Image 3

Asus TUF B450M-Pro Gaming Micro-ATX Motherboard | AMD AM4 Ryzen 3 Support | DDR4 | HDMI | Dual M.2 | USB 3.1 Gen 2 | Aura Sync RGB Lighting - Image 4

Asus TUF B450M-Pro Gaming Micro-ATX Motherboard | AMD AM4 Ryzen 3 Support | DDR4 | HDMI | Dual M.2 | USB 3.1 Gen 2 | Aura Sync RGB Lighting - Image 5

(Be First to review)

Rs. 20,000

Rs. 24,999

Available coupons

Rs. 200

#200

Expires on: 12/23/2025

Quantity:

Chipset: AMD B450
Form Factor: Micro ATX (24.4 cm x 24 cm / 9.6 in x 9.5 in)
Maximum Capacity: Up to 128 GB
Architecture: Dual channel

See full speces

Store Pickup

Available Today at Zolpa Store

Express Delivery

Available for delivery within 2-3 business days

Rs. 20,000

Rs. 24,999

General Information

Brand

ASUS

Model

AMD B450 TUF Gaming

Chipset

AMD B450

Processor Support

AMD AM4 Socket for AMD Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3rd / 2nd / 1st Gen AMD Ryzen™ / 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics / Athlon™ with Radeon™ Vega Graphics Processors

Form Factor

Micro ATX (24.4 cm x 24 cm / 9.6 in x 9.5 in)

Operating System Support

Windows® 10 64-bit, Windows® 7 64-bit*

Audio & Network

Audio Chipset

Realtek® ALC S1200A

Audio Channels

8-Channel High Definition Audio CODEC

Power, Cooling & Monitoring

Power Connectors

Memory Support

Memory Type

DDR4

DIMM Slots

4 x DDR4 DIMM sockets

Maximum Capacity

Up to 128 GB

Supported Frequencies

DDR4 4400(O.C.) / 3533(O.C.) / 3466(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz

Architecture

Dual channel

Connectivity & Expansion

Expansion Slots

1 × PCIe 3.0/2.0 x16 (x16 mode for 3rd Gen Ryzen), 1 × PCIe 3.0/2.0 x16 (x8 mode for 2nd & 1st Gen Ryzen with Radeon Vega Graphics), 1 × PCIe 3.0/2.0 x16 (max x4 mode for Athlon with Radeon Vega Graphics), 1 × PCIe 2.0 x16 (max x4 mode for AMD B450 chipset), 1 × PCIe 2.0 x1

Internal I/O & Miscellaneous Headers

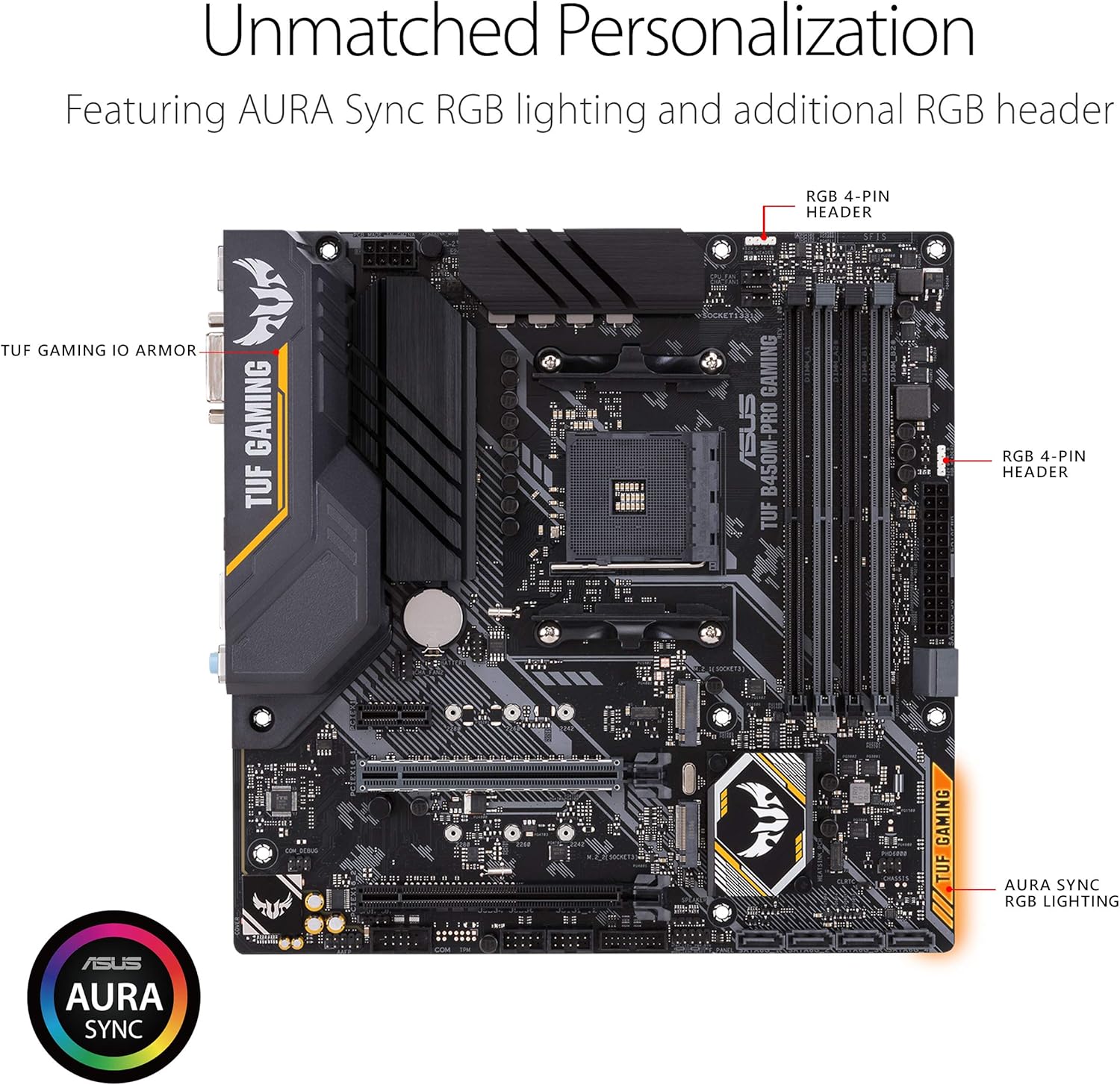

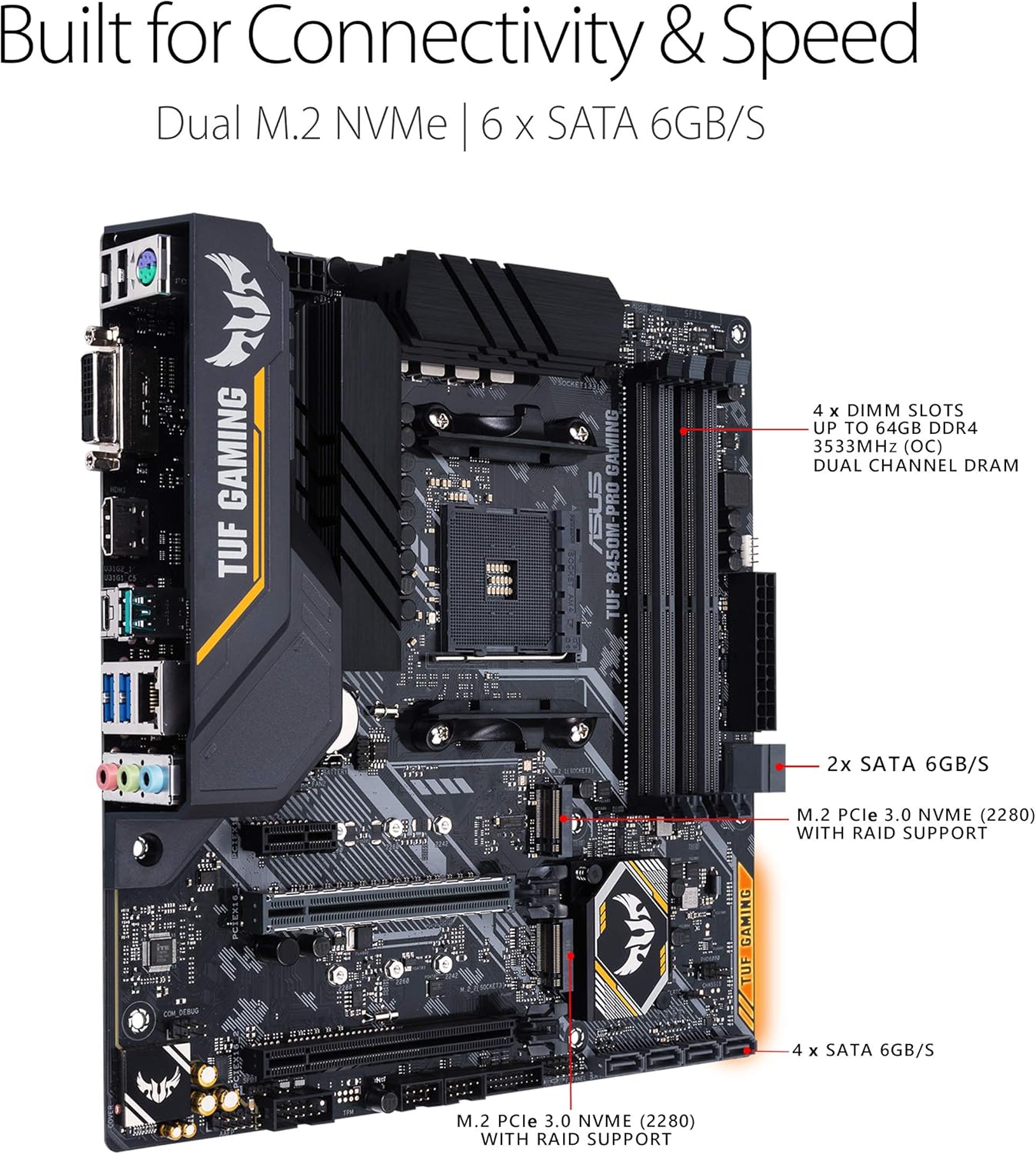

Includes 2 × Aura RGB strip headers, 2 × M.2 Socket 3 with M key (2242/2260/2280 support), and 6 × SATA 6Gb/s connectors, along with 1 × CPU fan connector (4-pin) and 2 × chassis fan connectors (4-pin, Power is supplied via 1 × 24-pin ATX main connector and 1 × 8-pin ATX 12V connector, with front panel connectivity provided by 1 × audio connector (AAFP), 1 × system panel connector, and 1 × S/PDIF out header, Additional internal headers include 1 × clear CMOS jumper, 1 × COM port header, and 1 × speaker connector.

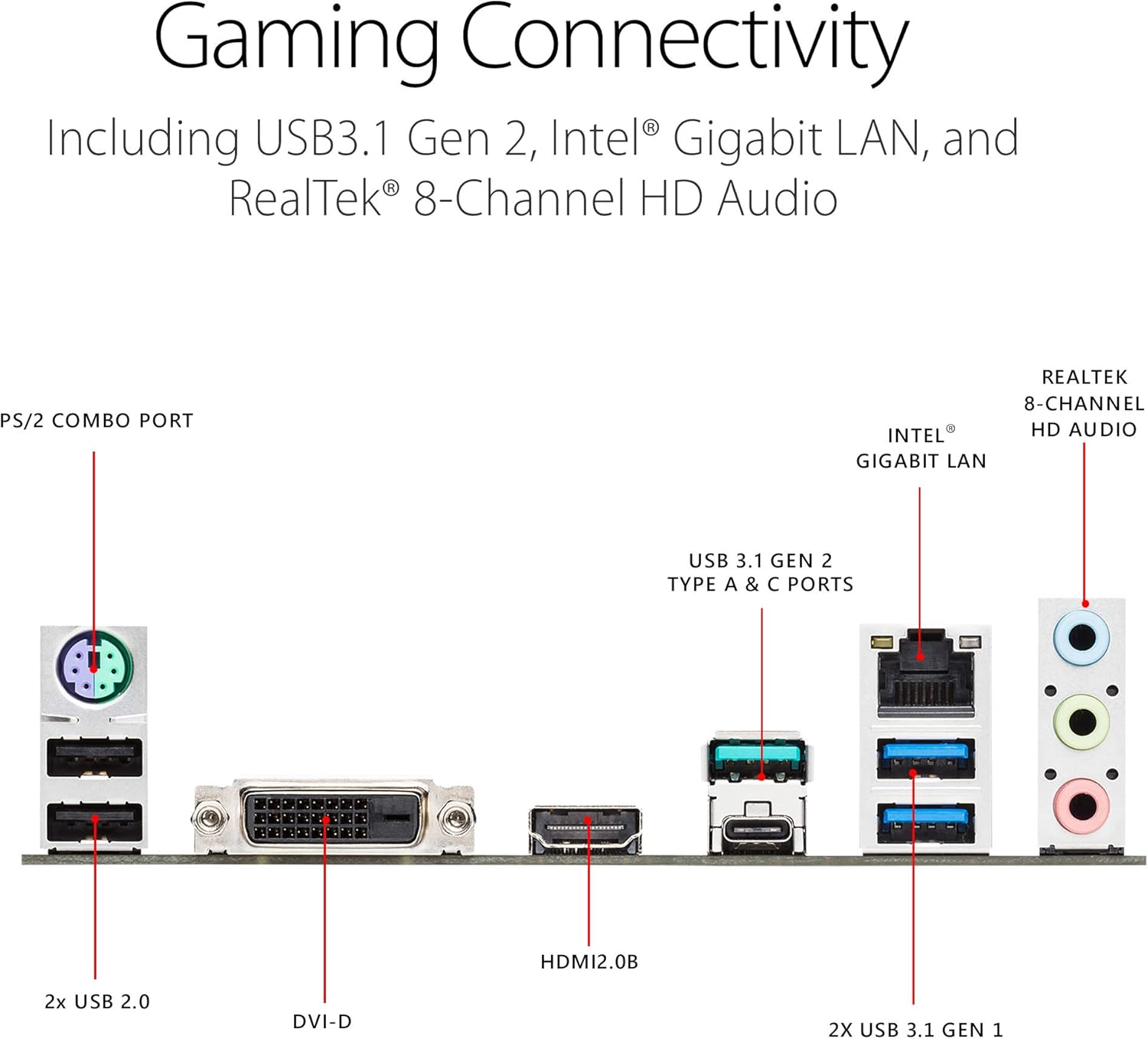

Back Panel Ports

1 x DVI-D port, 1 × HDMI 2.0b, 1 × RJ45 LAN port, 1 × PS/2 keyboard/mouse combo port, 1 × USB 3.1 Gen 2 Type-A, 1 × USB 3.1 Gen 1 Type-C, 2 × USB 3.1 Gen 1 Type-A, 2 × USB 2.0 ports, 3 × Audio jacks (7.1-channel audio)

Dimensions & Build

Form Factor

ATX

Dimensions

24.4 cm x 24 cm / 9.6 in x 9.5 in
