(Be First to review)

Rs. 84,999

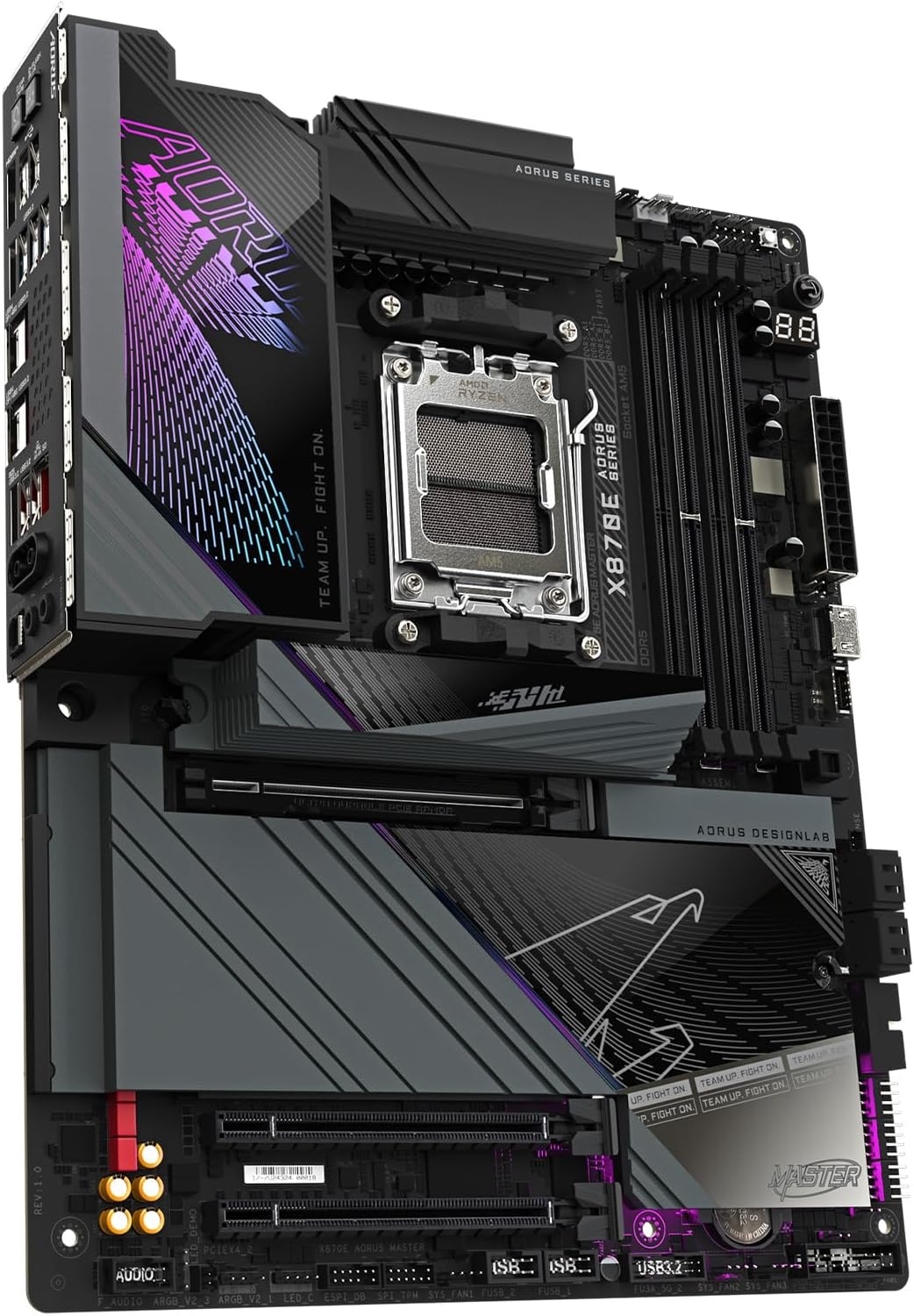

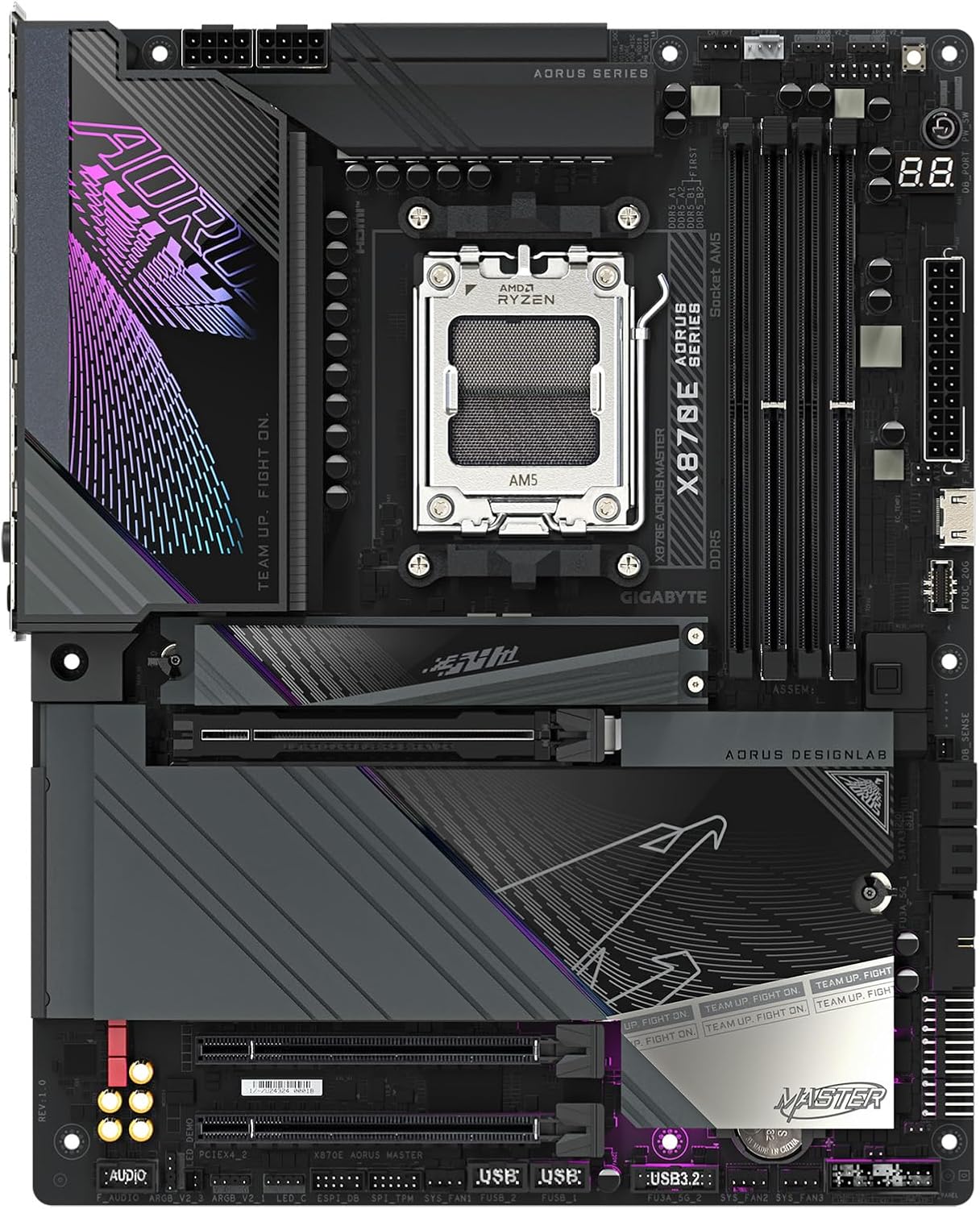

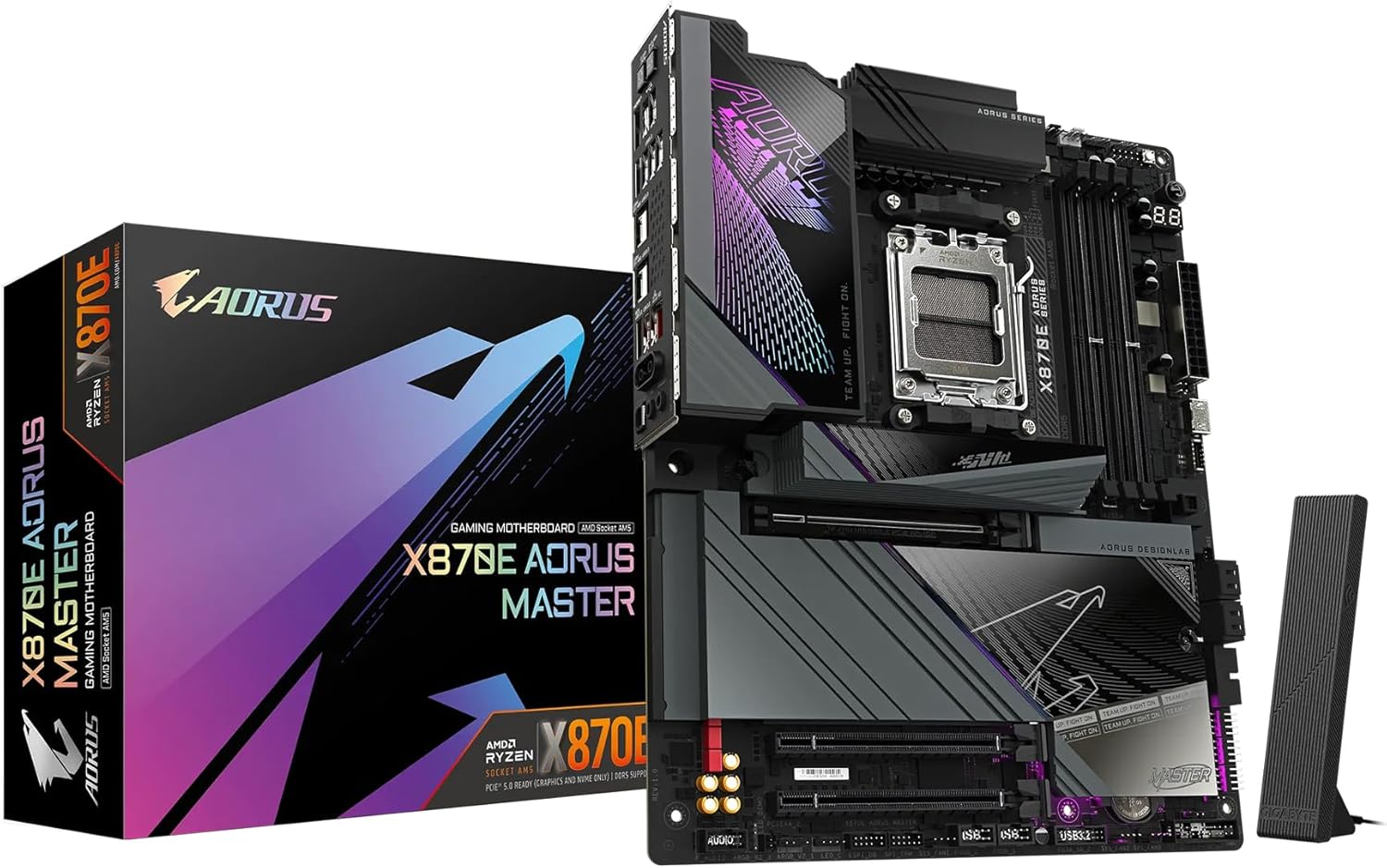

GIGABYTE X870E AORUS Master Motherboard | AMD AM5 LGA 1718 | ATX | DDR5 Support | 4x M.2 | PCIe 5.0 | USB4 | Wi-Fi 7 | 5GbE LAN | EZ-Latch - Image 2

GIGABYTE X870E AORUS Master Motherboard | AMD AM5 LGA 1718 | ATX | DDR5 Support | 4x M.2 | PCIe 5.0 | USB4 | Wi-Fi 7 | 5GbE LAN | EZ-Latch - Image 3

GIGABYTE X870E AORUS Master Motherboard | AMD AM5 LGA 1718 | ATX | DDR5 Support | 4x M.2 | PCIe 5.0 | USB4 | Wi-Fi 7 | 5GbE LAN | EZ-Latch - Image 4

GIGABYTE X870E AORUS Master Motherboard | AMD AM5 LGA 1718 | ATX | DDR5 Support | 4x M.2 | PCIe 5.0 | USB4 | Wi-Fi 7 | 5GbE LAN | EZ-Latch - Image 5

GIGABYTE X870E AORUS Master Motherboard | AMD AM5 LGA 1718 | ATX | DDR5 Support | 4x M.2 | PCIe 5.0 | USB4 | Wi-Fi 7 | 5GbE LAN | EZ-Latch - Image 6

GIGABYTE X870E AORUS Master Motherboard | AMD AM5 LGA 1718 | ATX | DDR5 Support | 4x M.2 | PCIe 5.0 | USB4 | Wi-Fi 7 | 5GbE LAN | EZ-Latch - Image 7

(Be First to review)

Rs. 84,999

Rs. 94,999

Quantity:

Chipset: AMD X870E
Form Factor: ATX (30.5 cm x 24.4 cm)
Maximum Capacity: Up to 256 GB (64 GB per DIMM)
Architecture: Dual channel

See full speces

Store Pickup

Available Today at Zolpa Store

Express Delivery

Available for delivery within 2-3 business days

Rs. 84,999

Rs. 94,999

General Information

Brand

GIGABYTE

Model

X870E

Chipset

AMD X870E

Processor Support

Supports AMD Ryzen™ 9000 Series, Ryzen™ 8000 Series, Ryzen™ 7000 Series Processors

Form Factor

ATX (30.5 cm x 24.4 cm)

BIOS

AMI UEFI BIOS, 256 Mbit flash, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System Support

Windows 11 64-bit, Windows 10 64-bit

Special Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup

Audio & Network

Audio Chipset

Realtek® ALC1220

Audio Channels

Supports 2/4/5.1/7.1-channel audio output

Power, Cooling & Monitoring

Power Connectors

1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors

Memory Support

Memory Type

DDR5

DIMM Slots

4 x DDR5 DIMM sockets

Maximum Capacity

Up to 256 GB (64 GB per DIMM)

Supported Frequencies

Native: DDR5 5200 / 4800 / 4400 MT/s, OC: DDR5 5600 / 6000 / 6200 / 6400 / 6600 / 6666 / 6800 / 7000 / 7200 / 7600 / 7800 / 8000 / 8200 / 8400 / 8600 MT/s

Architecture

Dual channel

Memory Features

ECC and non-ECC Un-buffered DIMM modules supported

Integrated Graphics

Display Outputs

2 x USB4® Type-C ports with DisplayPort 1.4 (max 3840x2160@240Hz), 1 x HDMI 2.1 port (max 4096x2160@60Hz, HDCP 2.3, HDR), 1 x Front HDMI port (max 1920x1080@30Hz, HDMI 1.4)

Connectivity & Expansion

Expansion Slots

From CPU: 1 x PCIe x16 (Supports: PCIe 5.0 x16 on Ryzen 9000/7000; PCIe 4.0 x8 on Ryzen 8000 Phoenix 1; PCIe 4.0 x4 on Phoenix 2) From Chipset: 1 x PCIe x16 (PCIe 4.0 x4) 1 x PCIe x16 (PCIe 3.0 x4)

USB Interfaces

Back Panel

2 x USB 2.0/1.1, 4 x USB 3.2 Gen 1, 2 x USB4® Type-C, 4 x USB 3.2 Gen 2 Type-A (Red)

Internal Headers

1 x USB 3.2 Gen 2x2 Type-C header, 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0/1.1 headers

Internal I/O & Miscellaneous Headers

1 x front panel header, 1 x front panel audio header, 1 x Clear CMOS jumper, 4 x SATA 6Gb/s connectors, 1 x CPU fan header, 1 x 24-pin ATX power, 2 x 8-pin ATX 12V power, 1 x CPU/water pump fan header, 4 x system fan headers, 2 x system/water pump fan headers, 4 x addressable RGB Gen2 LED headers, 1 x RGB LED header, 4 x M.2 connectors, 1 x USB 3.2 Gen 2x2 Type-C header, 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0 headers, 1 x noise detection header, 1 x TPM header, 1 x power button, 1 x reset button, 1 x reset jumper, 2 x temperature sensor headers, Voltage measurement points

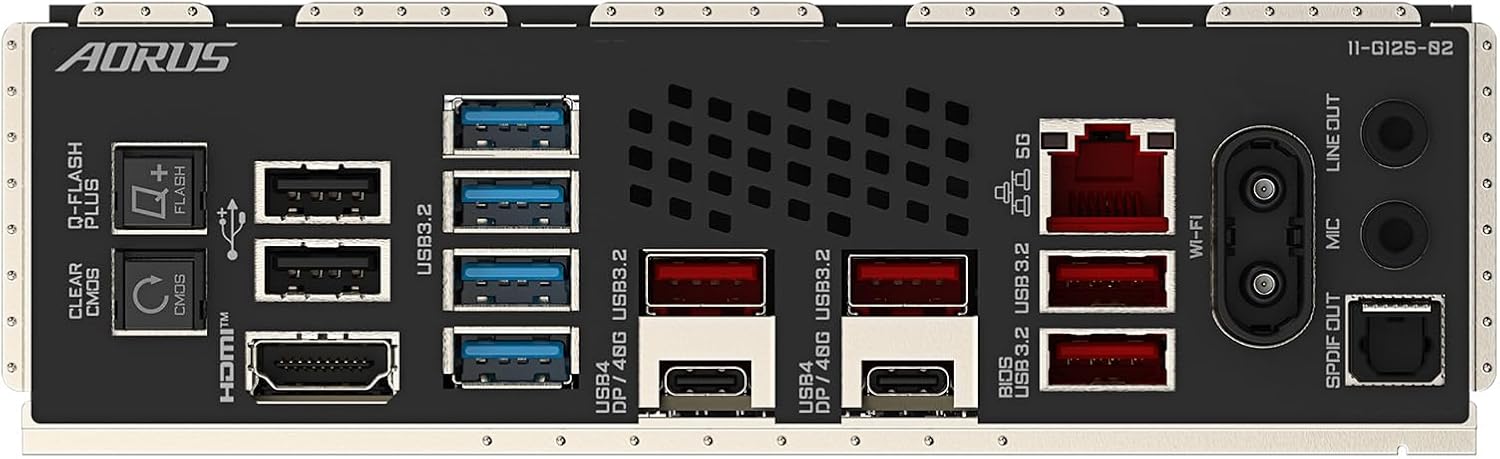

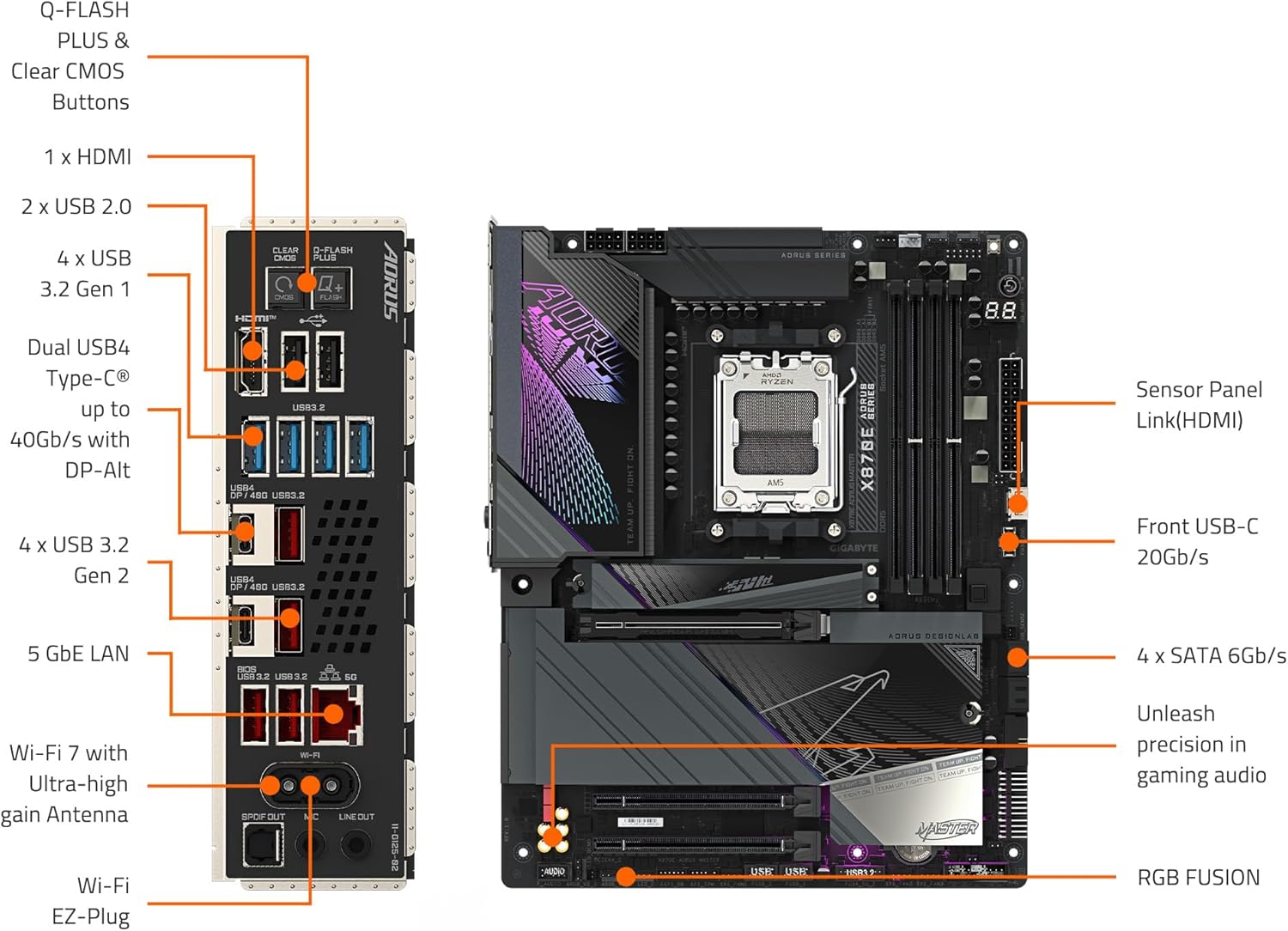

Back Panel Ports

1 x RJ-45 LAN port, 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x Q-Flash Plus button, 1 x Clear CMOS button, 2 x USB4® Type-C ports (supporting DisplayPort), 4 x USB 3.2 Gen 2 Type-A, 2 x antenna connectors, 2 x audio jacks, 1 x Optical S/PDIF Out

Dimensions & Build

Form Factor

ATX

Dimensions

30.5 cm x 24.4 cm
