Chipset: AMD B450
Form Factor: Micro ATX (24.4 cm x 24 cm / 9.6 in x 9.5 in)
Maximum Capacity: Up to 128 GB
Architecture: Dual channel

See full speces

Store Pickup

Available Today at Zolpa Store

Express Delivery

Available for delivery within 2-3 business days

Rs. 15,999

Rs. 19,999

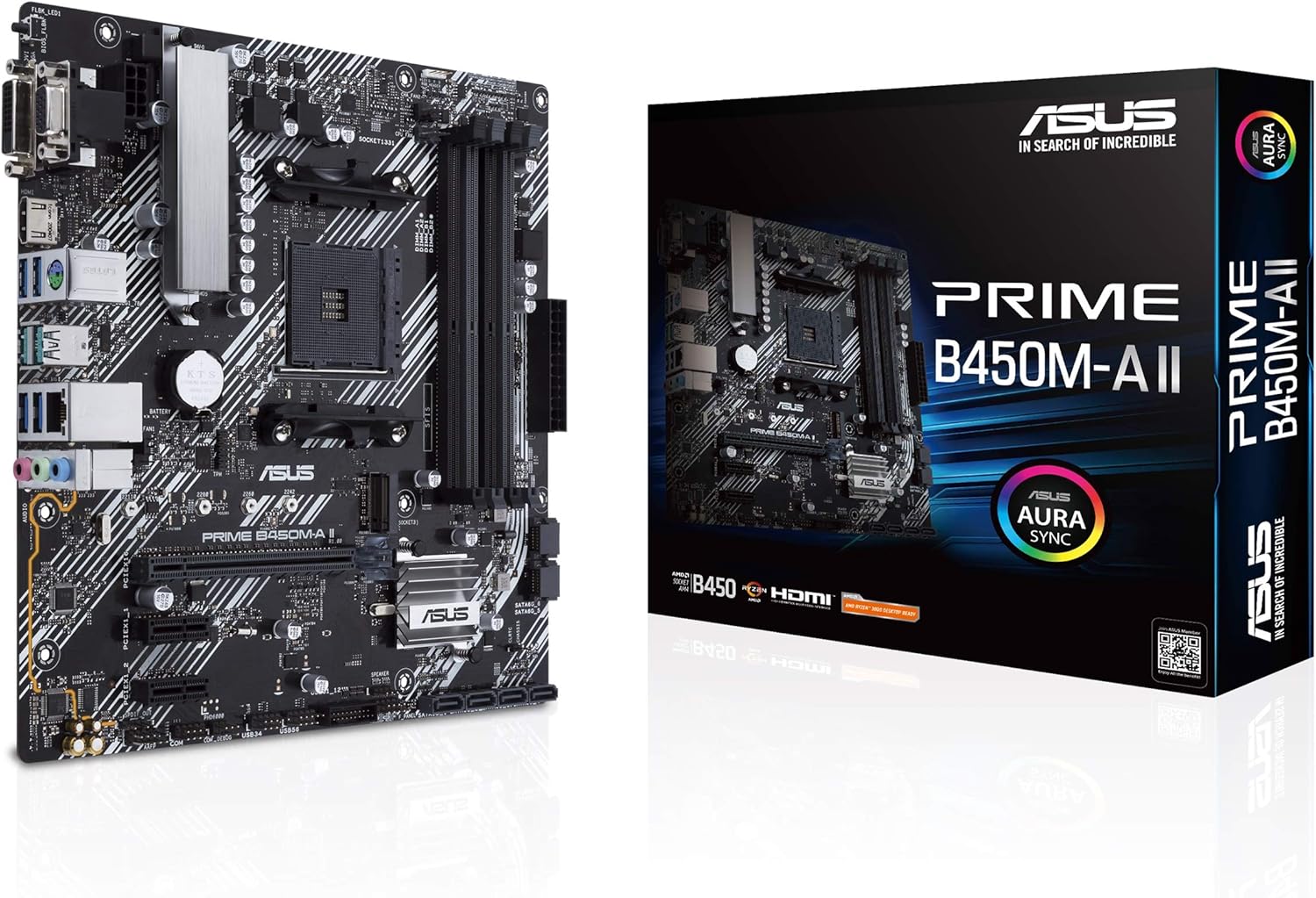

General Information

Brand

ASUS

Model

AMD B450 Motherboard

Chipset

AMD B450

Processor Support

AMD AM4 Socket for AMD Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3rd / 2nd / 1st Gen AMD Ryzen™ / 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics / Athlon™ with Radeon™ Vega Graphics Processors

Form Factor

Micro ATX (24.4 cm x 24 cm / 9.6 in x 9.5 in)

Operating System Support

Windows® 10 64-bit, Windows® 7 64-bit*

Audio & Network

Audio Chipset

Realtek ALC887 / ALC897

Audio Channels

7.1-Channel (with chassis HD audio module support)

Power, Cooling & Monitoring

Power Connectors

1 × 24‑pin ATX main power, 2 × 8‑pin ATX 12 V CPU power

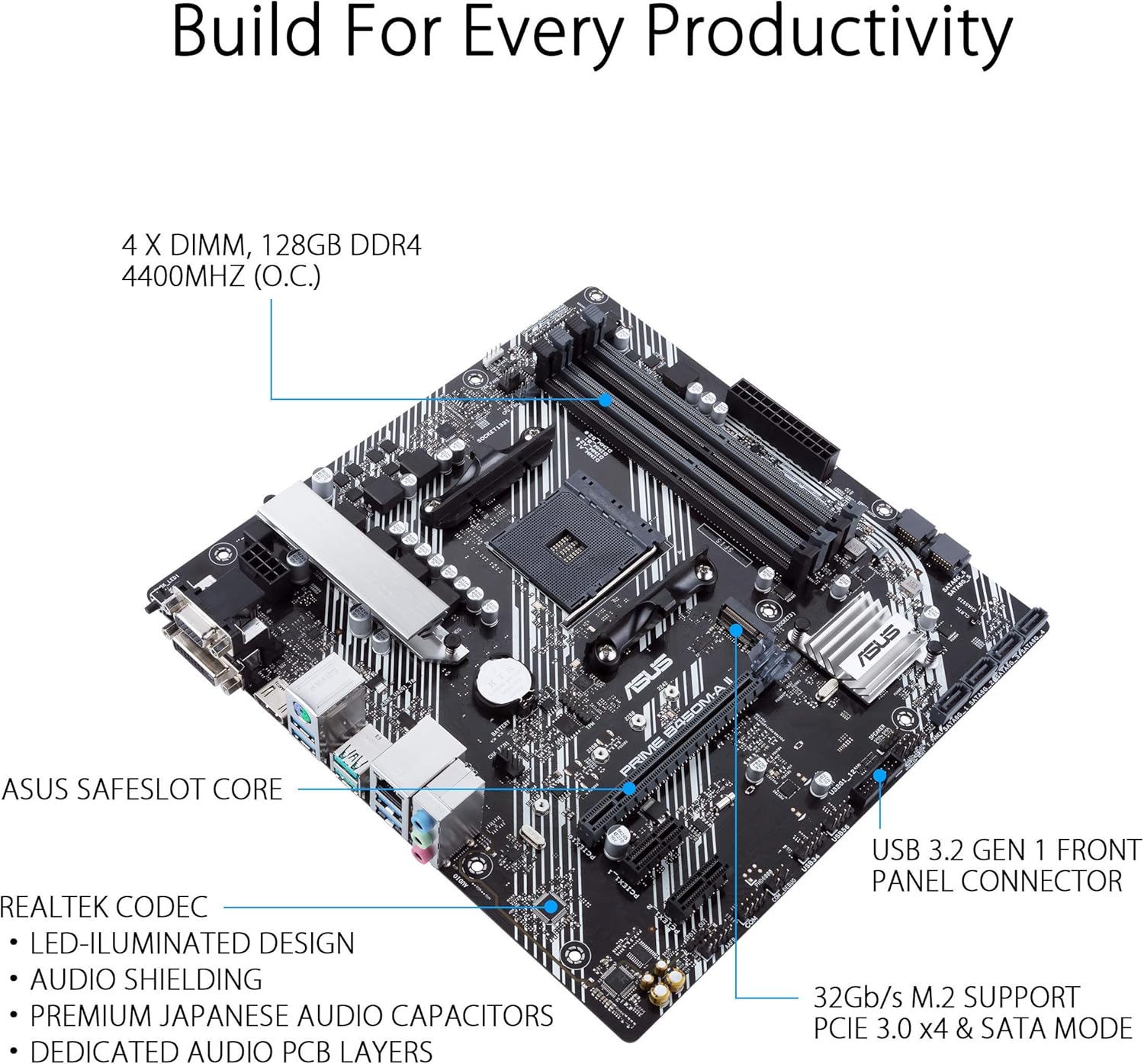

Memory Support

Memory Type

DDR4

DIMM Slots

4 x DDR4 DIMM sockets

Maximum Capacity

Up to 128 GB

Supported Frequencies

DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz

Architecture

Dual channel

Memory Features

Un-buffered, Non-ECC, Dual Channel Memory Architecture

Connectivity & Expansion

Expansion Slots

1 × PCIe 3.0 x16 slot (x16 mode for 3rd Gen Ryzen), 1 × PCIe 3.0 x16 slot (x8 mode for 2nd & 1st Gen Ryzen with Radeon™ Vega Graphics), 1 × PCIe 3.0 x16 slot (x4 mode for Athlon with Radeon™ Vega Graphics), 2 × PCIe 2.0 x1 slots

Internal I/O & Miscellaneous Headers

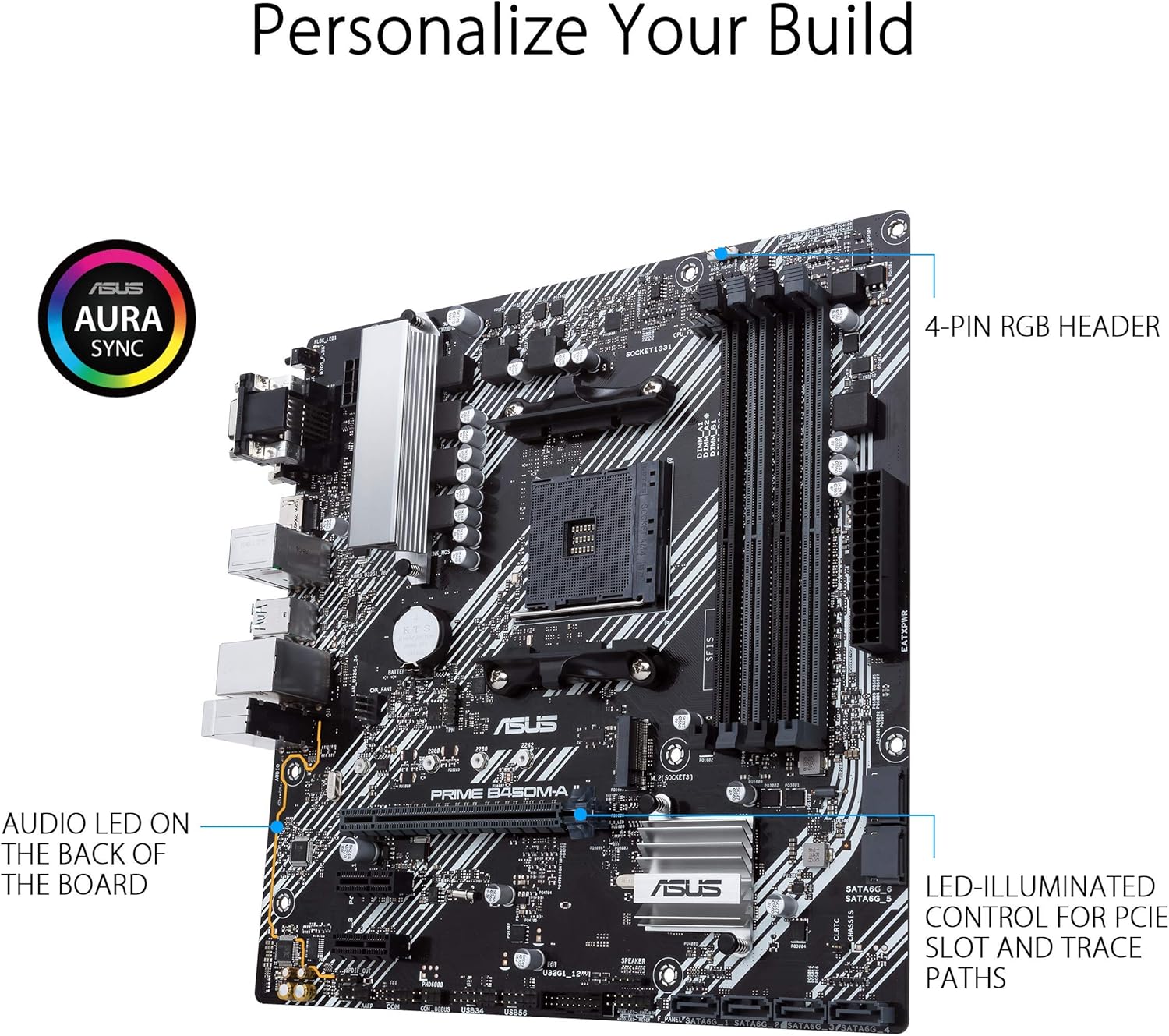

1 x front panel audio header, 1 x Clear CMOS jumper, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 4 × Addressable ARGB Gen2 headers, 1 × RGB headers, 1 × CPU fan header (4-pin), 2 × Chassis fan headers (4-pin), 1 × USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports), 2 × USB 2.0 headers (support 4 additional USB 2.0 ports), 1 × M.2 Socket 3 (M key), 1 × SPI TPM header, 1 × COM port header, 6 × SATA 6Gb/s connectors, 1 × S/PDIF out header, 1 × System panel connector, 1 × Speaker connector

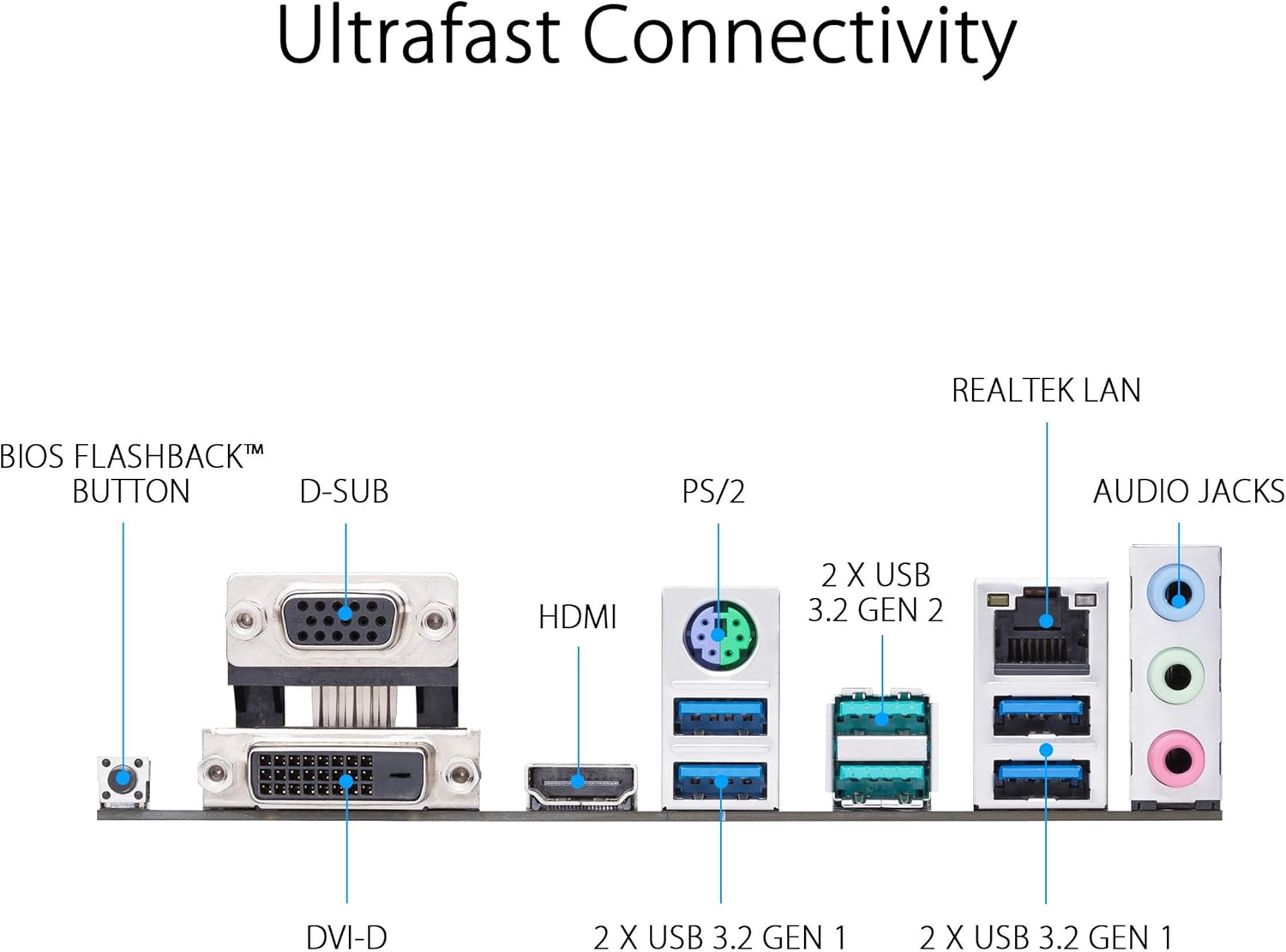

Back Panel Ports

1 x PS/2 combo port, 1 × DVI-D, 1 × D-Sub (VGA), 1 × HDMI 2.0b, 1 × RJ45 LAN port, 2 × USB 3.2 Gen 2 Type-A ports, 4 × USB 3.2 Gen 1 Type-A ports, 3 × Audio jacks (7.1 channel audio), 1 × BIOS FlashBack™ button

Dimensions & Build

Form Factor

ATX

Dimensions

24.4 cm x 24 cm / 9.6 in x 9.5 in
