(Be First to review)

Rs. 15,999

(Be First to review)

Rs. 15,999

Rs. 19,999

Available coupons

Rs. 200

#200

Expires on: 12/23/2025

Quantity:

Chipset: Intel® B760 Express Chipset
Form Factor: Micro ATX (23.0 cm x 21.5 cm)
Maximum Capacity: Up to 64 GB (32 GB per DIMM)
Architecture: Dual channel

See full speces

Store Pickup

Available Today at Zolpa Store

Express Delivery

Available for delivery within 2-3 business days

Rs. 15,999

Rs. 19,999

General Information

Brand

GIGABYTE

Model

B760

Chipset

Intel® B760 Express Chipset

Processor Support

Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors

Form Factor

Micro ATX (23.0 cm x 21.5 cm)

BIOS

AMI UEFI BIOS, 128 Mbit flash, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System Support

Windows 11 64-bit, Windows 10 64-bit

Special Features

Support for Q-Flash

Audio & Network

Audio Chipset

Realtek® Audio CODEC

Audio Channels

Supports 2/4/5.1/7.1-channel audio output

Power, Cooling & Monitoring

Power Connectors

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector

Memory Support

Memory Type

DDR4

DIMM Slots

2 x DDR4 DIMM sockets

Maximum Capacity

Up to 64 GB (32 GB per DIMM)

Supported Frequencies

DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s

Architecture

Dual channel

Memory Features

CC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode)

Integrated Graphics

Display Outputs

1 x D-Sub (max 1920x1200@60Hz), 1 x HDMI port (max resolution: 4096x2160@60 Hz)

Connectivity & Expansion

Expansion Slots

From CPU: 1 x PCI Express x16 slot (PCIe 4.0 x16), From Chipset: 1 x PCI Express x1 slot (PCIe 3.0 x1)

USB Interfaces

Back Panel

4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports

Internal Headers

1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0/1.1 headers (4 ports)

Internal I/O & Miscellaneous Headers

1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 1 x serial port header, 1 x Clear CMOS jumper, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 2 x system fan headers, 4 x SATA 6Gb/s connectors, 1 x CPU fan header, 1 x RGB LED strip header, 2 x USB 2.0 headers, 1 x S/PDIF Out header

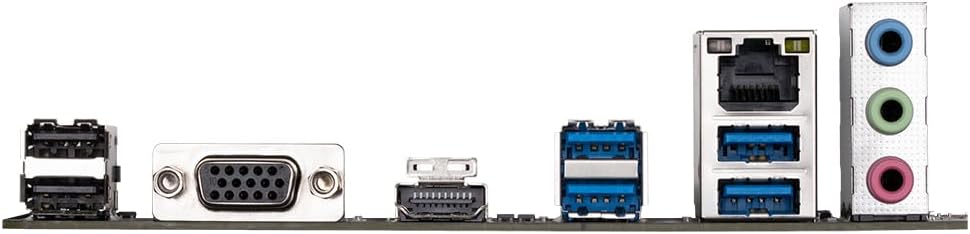

Back Panel Ports

1 x HDMI port, 1 x RJ-45 LAN port, 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x D-Sub port, 3 x audio jacks

Dimensions & Build

Form Factor

Micro ATX

Dimensions

23.0 cm x 21.5 cm
